Weigh Cell Modules

High performance/high precision weighing modules

  • Patented C-SHS weighing & EM-DLC analog to digital converter ensure precise results every time
  • High speed & high resolution for in-line production weighing, filling, checkweighing, or enclosed environments
  • Compact durable design to protect against vertical & transverse overloads, vibration & draft
View All Weigh Cell Modules models

Key Features

External Calibration
Dust & Waterproof
Ethernet/LAN
GLP/GMP/ISO Compliant
Data Memory
Auto On/Off
5 Year US Warranty

40 YEARS OF PROVEN ACCURACY

15 Models
Features

High Performance

  • Highest precision & accuracy due to Compact Super Hybird Sensor (C-SHS)
  • Wide range of capacity from 21g to 6000g with high resolution from microgram to milligram
  • Fast response speed ranging 0.5 to 1.3 seconds depending on environment & model
  • High-speed data transmission of 50 times per second
  • Smart Weighing Range function on dual capacity range models

Compact Durable Robust Construction

  • IP65 dust and waterproof constructed to withstand tough weighing environments
  • Stainless steel (SUS304) pan and housing will hold up in tough production settings
  • Compact footprint of 59 to 80 width makes it ideal of tight confined spaces: in-line or enclosed
  • C-SHS protects and stabilizes against vertical and transvere overload, vibration & drafts influences
  • Easily withstand 10 million repeated loadings or more

Flexible Integration

  • Standard Bi-directional RS-232C, with LAN communication available through AD-8526 serial/Ethernet converter
  • Comes with or with out remote controller such a AD8922A
  • Easy Direct Connection to PC or PLC or supported by WinCT software (lab settings)
  • Upgrade to AD-8923-CC for seamless CC-Link interface to transmit into PC/PLC of choice
  • Easy mountable base and display and slim design allow multiple units to be easily aligned in mass production rows
  • Possible to fit with a custom weighing pan of your choice
Model Comparison
  Capacity Readability Pan Size
AD-4212A Family
AD-4212A-100 110g 0.0001g 50 × 50mm / 1.96 x 1.96in
AD-4212A-200 210g 0.001g 50 × 50mm / 1.96 x 1.96in
AD-4212A-600 610g 0.001g 70 × 70mm / 2.7 x 2.7in
AD-4212A-1000 1100g 0.001g 70 × 70mm / 2.7 x 2.7in
AD-421B Family

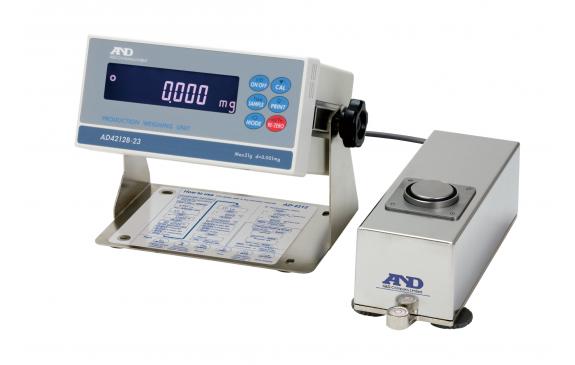

AD-4212B-23 21g 0.001mg Ø34mm / 1.33in
AD-4212B-101 31|110g 0.01|0.1mg Ø34mm / 1.33in
AD-4212B-102 110g 0.01mg Ø34mm / 1.33in
AD-4212B-201 210g 0.1mg 50 × 50mm / 1.96 x 1.96in
AD-4212B-301 310g 0.1mg 50 × 50mm / 1.96 x 1.96in
AD-4212C Family
AD-4212C-301  51| 320 g 0.0001|0.001g 50 × 50mm / 1.96 x 1.96in

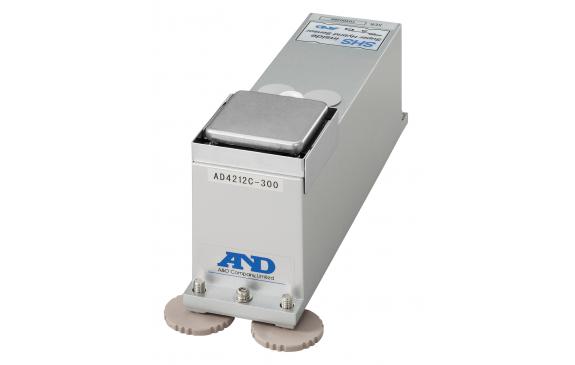

AD-4212C-300 320g 0.001g 50 × 50mm / 1.96 x 1.96in
AD-4212C-600 620g 0.001g 50 × 50mm / 1.96 x 1.96in
AD-4212C-3100  510|3200g 0.001|0.01g 50 × 50mm / 1.96 x 1.96in
AD-4212C-3000 3200g 0.01g 50 × 50mm / 1.96 x 1.96in
AD-4212C-6000 6200g 0.01g 50 × 50mm / 1.96 x 1.96in



See model for full list of specifications.
