HW-CEP Series Intrinsically Safe Bench Scale

  • Intrinsically safe scale for hazardous environments
  • The intrinsically safe product design ensures the highest level of safety and complies with the latest hazardous area standards
  • Weigh at the "Speed Of Light" in hazardous areas
View All HW-CEP Series Intrinsically Safe Bench Scale models

Key Features

Intrinsically Safe
Comparator Function
Battery Operation
Dust & Waterproof Platform
Auto Power Off
Piece Counting
Accumulation Function

REMOVING THE BARRIERS IN HAZARDOUS WEIGHING

Compliance to Safety

The HW-CEP Series Bench Scale is designed to weigh safely in potentially hazardous environments.

This intrinsically safe product ensures the highest level of safety and is approved according to global standards for use in FM Class 1, Division 1.

Download US Approval Document

Download Canada Approval Document

Easy and Flexible Installation

Battery operation eliminates the need to secure power from a safe area behind a safe barrier saving you both time and money and gives you the flexibility to move the scale anywhere.

  • 1000+ hours of battery life
  • No need to secure power from a safe area
  • Flexibility to operate the scale anywhere


Fast and Simple Measurements

Increased through-put with 1.5 second stabilization times and intuitive operation makes easy work out of even complex weighing applications in hazardous areas.

  • 1.5 second response time
  • Large 25mm character, LCD Display with alphanumeric keypad
  • Multi-colored 5 step LED Comparator lights
  • Key lock function prevents unwanted changes
  • Host of built in functions including piece counting, auto-tare,  and accumulation (M+)


Dependable and Robust

The stainless steel weighing pan resists chemicals, scratches and rust. The IP65 base is easy to keep clean and hygienic and allows for weighing where spills are a potential hazard.

  • IP65 rated base for both dust and water
  • SUS430 stainless steel weigh pan


4 Models
Features

The HW-CEP bench scale family is designed to weigh safely in potentially explosive atmospheres. The intrinsically safe product design ensures the highest level of safety and complies with the latest hazardous area standards.

The fully configurable, large 5 segment lights enable fast, accurate checkweighing.

Auto-tare, accumulation and counting features add to the benefits of this truly versatile hazardous area scale.

Model Comparison
Model Capacity Resolution Weighing Pan Size

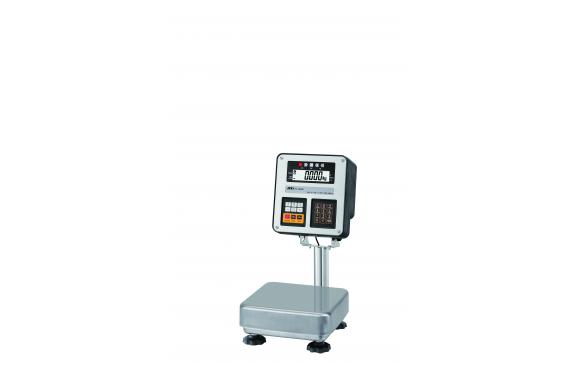

HW-10KCEP 10kg / 20lb / 320oz / 20lb-oz 0.001kg / 0.002lb / 0.05oz / 0.1oz 250 × 250mm / 9.8 x 9.5in

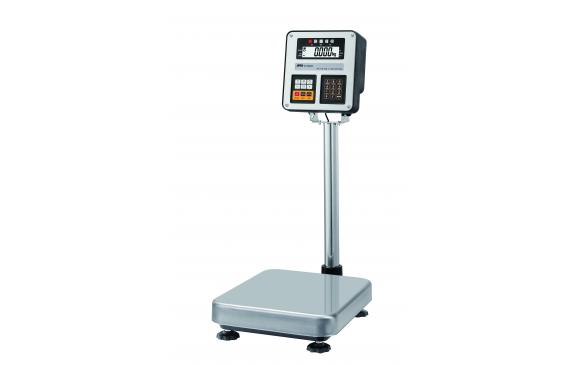

HW-60KCEP 60kg / 150lb / 2400oz 0.005kg / 0.01lb / 0.2oz 330 × 424mm / 13.0 x 16.7in
HW-100KCEP 100kg / 200lb / 3200 oz 0.01kg / 0.02lb / 0.5oz 390 × 530mm / 15.4 x 20.9in

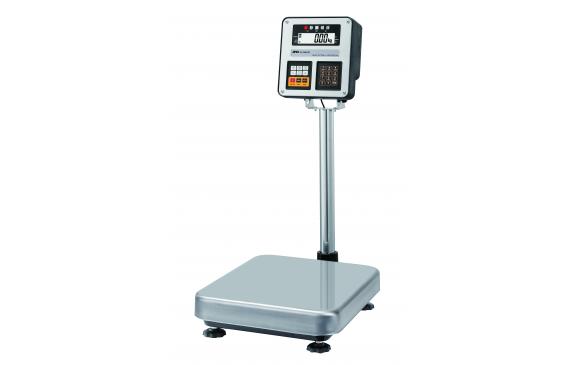

HW-200KCEP 220kg / 500lb / 8000oz 0.02kg / 0.05lb / 1oz 390 × 530mm / 15.4 x 20.9in



*See model for full list of specifications
