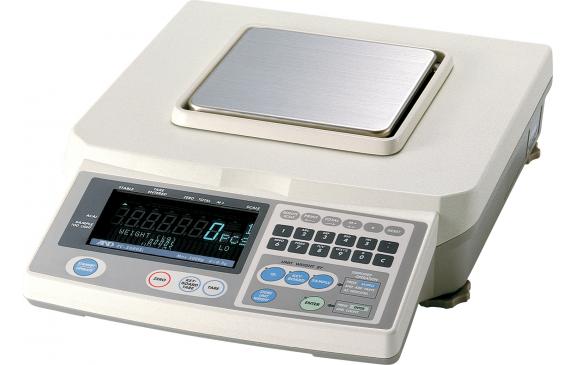

FCi/FC-Si Series Counting Scales

High Resolution Counting Scale for Advanced Applications

  • Internal resolution up to 1/5,000,000
  • Rugged aluminum die-cast housing with splash-proof display
  • 9 models available to 100lb capacity
View All FCi/FC-Si Series Counting Scales models

Key Features

500 Alphanumeric Memory
RS-232C with Optional 2nd/3rd Ports
Rechargeable Battery (Optional)
2 Year US Warranty
Piece Counting Function
Comparator Function
Accumulation Function
Vacuum Fluorescent Display

HIGH RESOLUTION COUNTING SCALE

Quick and Easy Operation



Navigation is simple - Follow the lights! Built-in LED navigation makes unit weight registration fast and easy. Built-in functions streamline counting and checkweighing applications

  • Quickly determine if a weight count is below, within or above target with the built-in comparator function with audible buzzer alert

  • Memory storage of up to 500 IDs, including unit & tare weights and alpha-numeric item codes

  • Large, clear Vacuum Fluorescent Display (VFD) shows all important information at a glance

Trusted Accuracy



Fast and accurate measurements and improved productivity are achieved with the Super Hybrid Sensor (SHS) and Automatic Count Accuracy Improvement (ACAI).

  • High internal resolution of 1,000,0000 counts for accurate parts counting
  • ACAI, which automatically corrects errors caused by variation in unit weights

Durable Construction



Sturdy metal housing and robust weighing sensor provide the protection and stability necessary for tough industrial weighing while extending the scale's usable life.

  • Rugged die-cast aluminum frame
  • Robust Super Hybrid Sensor's reduced parts minimizes maintenance costs
Features

Quick and Easy Operation

  • Simple unit weight registration with LED light navigation – simply follow the lights for increased ease of use

  • Quickly determine if a weight count is below, within or above target with the built-in comparator function and audible buzzer alert

  • Standard RS-232C interface allows for easy connection to a printer or computer

  • Large, clear Vacuum Fluorescent Display (VFD) shows all important information at a glance

  •          Memory storage for up to 500 IDs, including unit & tare weights, and alpha-numeric item codes

  • Easily format printouts with built-in Universal Flex Coms (UFC)

Trusted Accuracy



  • Super Hybrid Sensor (SHS) technology improves response speed

  • High internal resolutions of 1,000,000 counts for accurate parts counting

  • Increased counting accuracy with Automatic Count Accuracy Improvement (ACAI), which automatically corrects errors caused by variation in unit weights

Durable Construction



  • Rugged die-cast aluminum frame and stainless steel platform

  • Robust Super Hybrid Sensor's reduced parts minimizes maintenance costs and extends the scale's usable life

Weighing Units



  • lb, kg, pcs and oz

Model Comparison
  Capacity Readability Pan Size

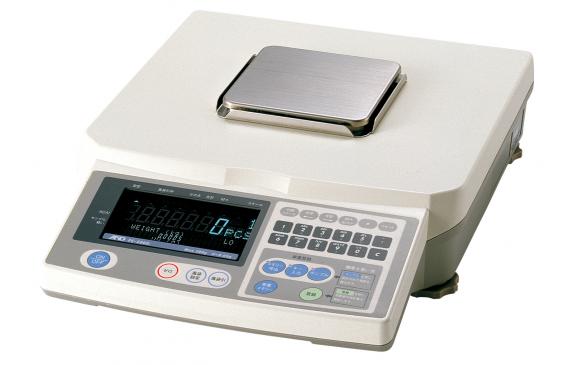

FC-500Si 1lb / 500g 0.00005lb / 0.02g 5 x 5in / 128 x 128mm
FC-5000Si 10lb / 5kg 0.0005lb / 0.2g 6.5 x 6.5in / 165 x 165mm

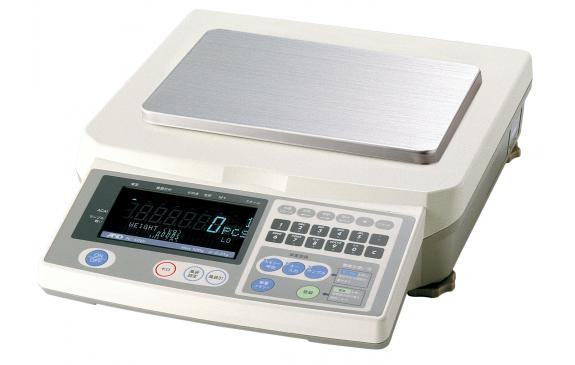

FC-500i 1lb / 500g 0.0001lb / 0.05g 8 x 6in / 200 x 150mm
FC-1000i 2lb / 1kg 0.0002lb / 0.1g 8 x 6in / 200 x 150mm
FC-2000i 5lb / 2kg 0.0005lb / 0.2g 11.8 x 11.0in / 300 x 280mm
FC-5000i 10lb / 5kg 0.001lb / 0.5g 11.8 x 11.0in / 300 x 280mm
FC-10Ki 20lb / 10kg 0.002lb / 1g 11.8 x 11.0in / 300 x 280mm
FC-20Ki 50lb / 20kg 0.005lb / 2g 11.8 x 11.0in / 300 x 280mm
FC-50Ki 100lb / 50kg 0.01lb / 5g 11.8 x 11.0in / 300 x 280mm



See model for full list of specifications.

Downloads

Learn about WinCT-UFC for the FC-i/Si scales here or download it below.
