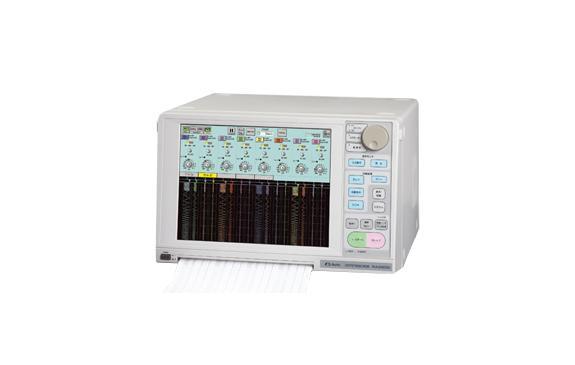

| Type | RA2800A |
|---|---|
| Display | 12.1" TFT color LCD (1024×768) with touch panel |
| Channel | 32 channels(16 slots) + 16 channel digital inputs (built-in on mainframe) |
| Memory Capacity | 1MW/ch (32MW when using 1 channel) |
| Memory Division | 1, 2, 4, 8, 16, 32, 64, 128 divisions |
| Printer Printing Method | Thermal head printer on thermal paper |
| Printer Width of Paper | 219.5mm |
| Printer Chart Speed | 50mm/s to 1mm/min |
| Effective Printing Range | 1 division (200mm/FS) to 16 divisions (10mm/FS) or arbitrary divisions and range settings |
| Storage Device | Built-in HDD 40GB (including system domain 5GB), External: USB memory, MO through USB standard I/F |
| Interface | LAN (100BASE-T) – control with communication command: Standard, RS-232C – control by communication command or UPS shut-down: Option, USB – external storage device connection: Standard |
| Measuring Mode | HD Recorder – Records input signal on built-in HDD directly, Measuring mode Memory Recorder – Records high speed events initiated by set trigger, Multi Recorder – Combined recording modes of Memory, HDD and/or Pen Recording, Pen Recorder – Records real time signal directly on chart paper, X-Y Recorder – Displays and records X-Y gragh by arbitrary 1ch f or X and up to 3ch f or Y axis |
| Dimensions | Approx. 400 (W) x 270 (H) x 380 (D) mm excluding projections |
- Multi-channel Measurement
Direct sensor inputs up to 32 channels (16 slots). 16 digital inputs for measuring various timing signals.
- Unique and easy ‘Pen-Recorder’ Mode
Easy operation like a pen recorder by the touch panel and virtual amp controls. High-speed and high-quality printout at max 50mm/sec.
- Large 12.1′ Display
12.1′ TFT color LCD display for better visibility of measured data.
- Long-term continuous recording on HDD Built-in 40GB HDD provides 60 days recording
At 10ms sampling on 32 channels
- User selectable measurement modes
With Omniace III RA2800A, users can easily select from five (5) measurement modes: Pen Recorder mode for real time strip chart recording, HD Recorder mode for long term recording of data to an HDD, X-Y Recorder mode for displaying/recording X-Y correlation of two signals, Multi Recorder mode captures transients while recording steady-state signals, and a Memory Recorder mode for recording fast events.
- Simple Operation
A ‘virtual’ Amplifier Control Panel with ‘Auto Function’ automatic adjustment mode combined with our proven reliable touch panel guarantee accurate data recording and simple operation.
- Upright Type (easy setup on a bench top or rack)
Parts configuration for measurement on a bench top or rackcontrol, display and printer units on the front; amplifiers and interfaces on the back.
- High-speed & High-quality Printing
Real time selectable chart speeds from 50mm/sec to 1mm/min (resolution: 20 dots/mm).
- 32 channels analog and 16 channels digital recording
Input up to 32 channels of analog data via isolated, dual channel, plug-in amplifier modules for a wide variety of signals and sensors.Its 16 digital input channels measure diverse signal timing and contact status.
- Outstanding Search Function
Max/Min, time and other search functions are available for finding required data points automatically after long term measurement.
- Standard LAN and USB I/F
LAN (100BASE-T) for data communication and USB for connecting to external storage devices are equipped as standard interfaces.
